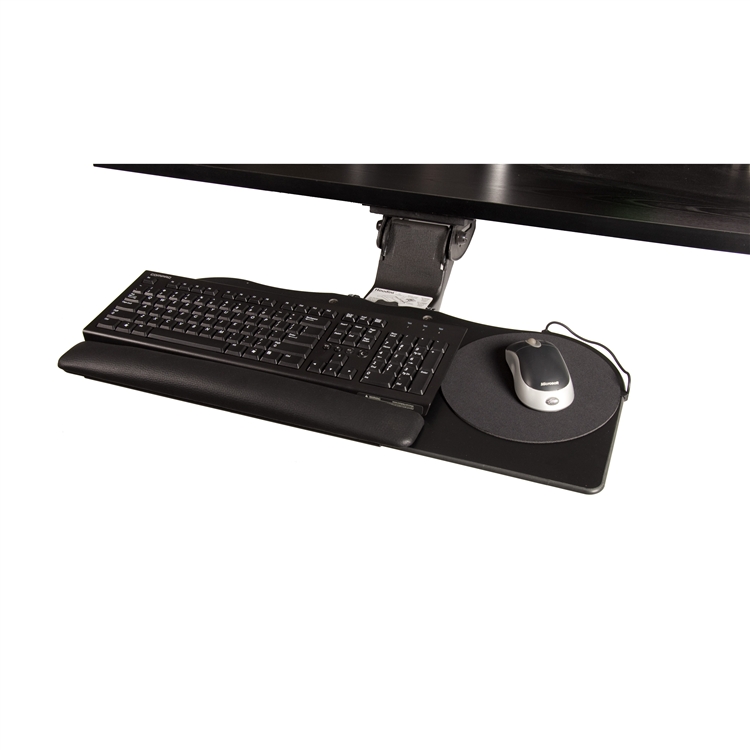

Universal Straight Platform
keyboard arm sold separately
Alternative Views:
Straight Platforms
A straight platform designed to help you achieve desired levels of personal comfort and performance, where design is important for more than just productivity. Our straight platforms come in sizes from 20" (508mm) - 28" (711mm). Not the size you are looking for? We can customize the platform size to suit your individual needs. You can choose to have an upholstered palmrest, slow recovery palmrest, full or partial palmrest, or no palmrest at all. Keyboard and mouse all on the same vertical plane with mousing surfaces on the left or right hand side.
List Price
$
172.00
Availability:
Usually Ships in 1 to 2 Business Days
Platform Width:
24"
25"
26"
27"
28"
30"
Finish:
black
Palm Rest:
upholstered polyurethane palm rest
no palm rest
slow recovery gelfoam palm rest
20" clip-on palm rest
6½" clip-on palm rest
6½" + 20" clip-on palm rest
.
Description
Technical Specs
Resources
Keyboard and mouse on the same plane

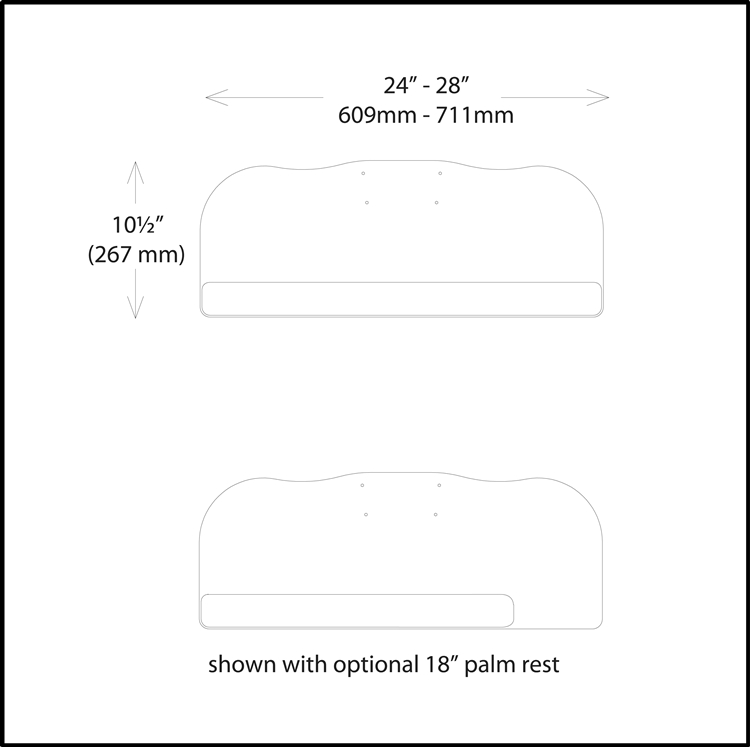

Dimensions
Straight Platform
Width:
24" (609mm) to 28" (711mm)
Depth:
10½" (267mm)
Shipping Carton
Carton:
29" x 12" x 2"
Weight:
5 lbs
Phenolic
Thick Phenolic Core Laminate is manufactured in a flat press by combining decorative papers saturated in melamine resin with phenolic-impregnated kraft layers at pressures exceeding 1000 psi (6895 kPa) and temperatures approaching 300° F (150° C). The thickness of the laminate is determined by the number of kraft layers used. The laminating process combines the durability of melamine resins with the aesthetics of decorative papers creating a surfacing material that has been the standard for well over forty years.
Thick Phenolic Core Laminate provides a durable surface that is easy to maintain using ordinary care. Available in a variety of colours with a polished bullnose edge detail. ¼” thick phenolic is the ideal material for constructing keyboard platforms due to its inherent physical properties which include light weight, high strength and durable finish. It also cuts very well and the bullnose edge all around leaves an attractive, safe appearance that is very user friendly.
Palm Rest
We offer two standard palm rest options on most platforms:
Upholstered (U) – featuring the same durable High Resiliency (HR) foam we use in our world class Built2Last Seating line and a wonderful leather-like medical grade vinyl upholstery material. These rests offer unparalleled durability and comfort. The surface is soft and warm to the touch and offers great weight distribution properties. They also are exceptionally durable, easy to clean and stay looking new for much longer than any other options on the market.
Slow recovery foam (S) – this choice will still be a quality upholstered finish in our premium medical grade leather-like vinyl, however, the core material offers all the great energy absorbing and desirable user feel benefits of gel without the strong odour that is often associated with gel. This is the same calibre of foam we use as our Energy Absorbing (EA) option in
our world class Built2Last Seating line.
Custom Capabilities
Like many other aspects of your keyboarding system, EA is capable of providing custom touches that can add greatly to the ergonomics, comfort and appearance of your final product. Some examples of these include: energy absorbing foam combined with our breathable upholstery material, custom colours, corporate logos, and custom sizes. For the latter see more information below: Customized Palm Rest Program:
Our customized palm rest program can add great ergonomic value and user comfort by providing a palm rest that matches the front profile of your chosen keyboard or input device perfectly. In addition to these benefits it also makes for a more complete and professional appearance from an aesthetic standpoint. To include a customized palm rest with your chosen platform simply follow these steps:
1. Add the suffix C in place of U or S and add the appropriate list price upcharge
2. Many popular keyboard models have already been included in the program but if yours is not: we will require a simple drawing or cardboard cut-out template showing the front contour along with measurements from the front of the 1 and 9 keys to the keyboard front edge.
3. Allow 3 weeks from drawing acceptance for delivery
Platform Cut Sheet
Ordering Guide
Width
Palm Rest
Finish
PU
24"
_
- no palm rest
B
- black
25"
U
- upholstered
W
- white
26"
S
- slow recovery gel
M
- grey matrix
27"
U18
- 18" upholstered
28"
C20
- 20" clip-on
30"
C206
- combo 6½" + 20" clip-on
C6
- 6½" clip-on
Description
• fits straight, diagonals 12" (304mm) and greater, radius 12" (304mm) and greater
• ultra thin design
manufactured from high grade 1/4” (6mm) phenolic
• standard with anti-skid pads and precision mousing surface
• position the keyboard and mouse on the same vertical plane
•
mousing surface on left or right
• standard sizes 20" (508mm) - 28" (711mm)
•
custom sizes available upon request
• choice of no palmrest or full palmrest - upholstered or slow recovery
•
optional 18" (457mm) or 20" (508mm) upholstered palmrest can be ordered with platforms
measuring 24" (609mm) - 28" (508mm)
• can be combined with CornerShaper
™
to convert 90º corners to diagonals
